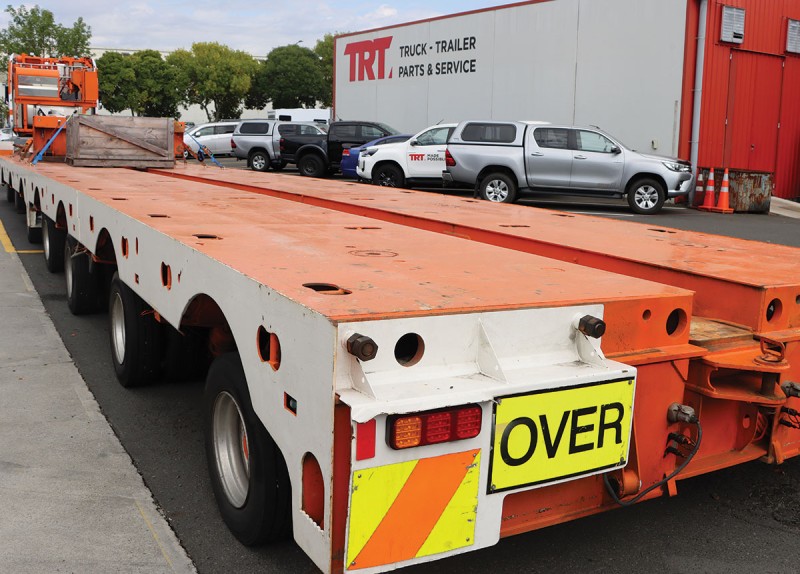

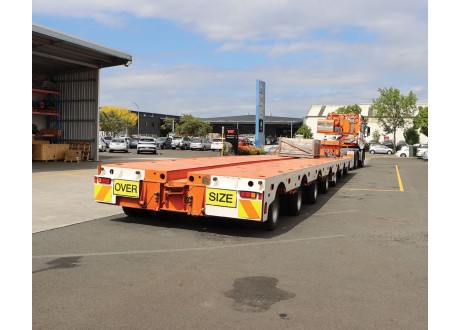

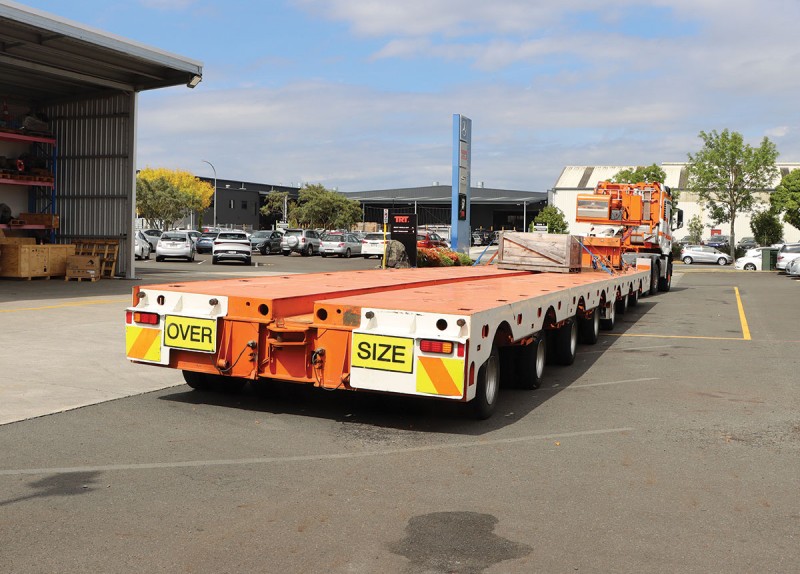

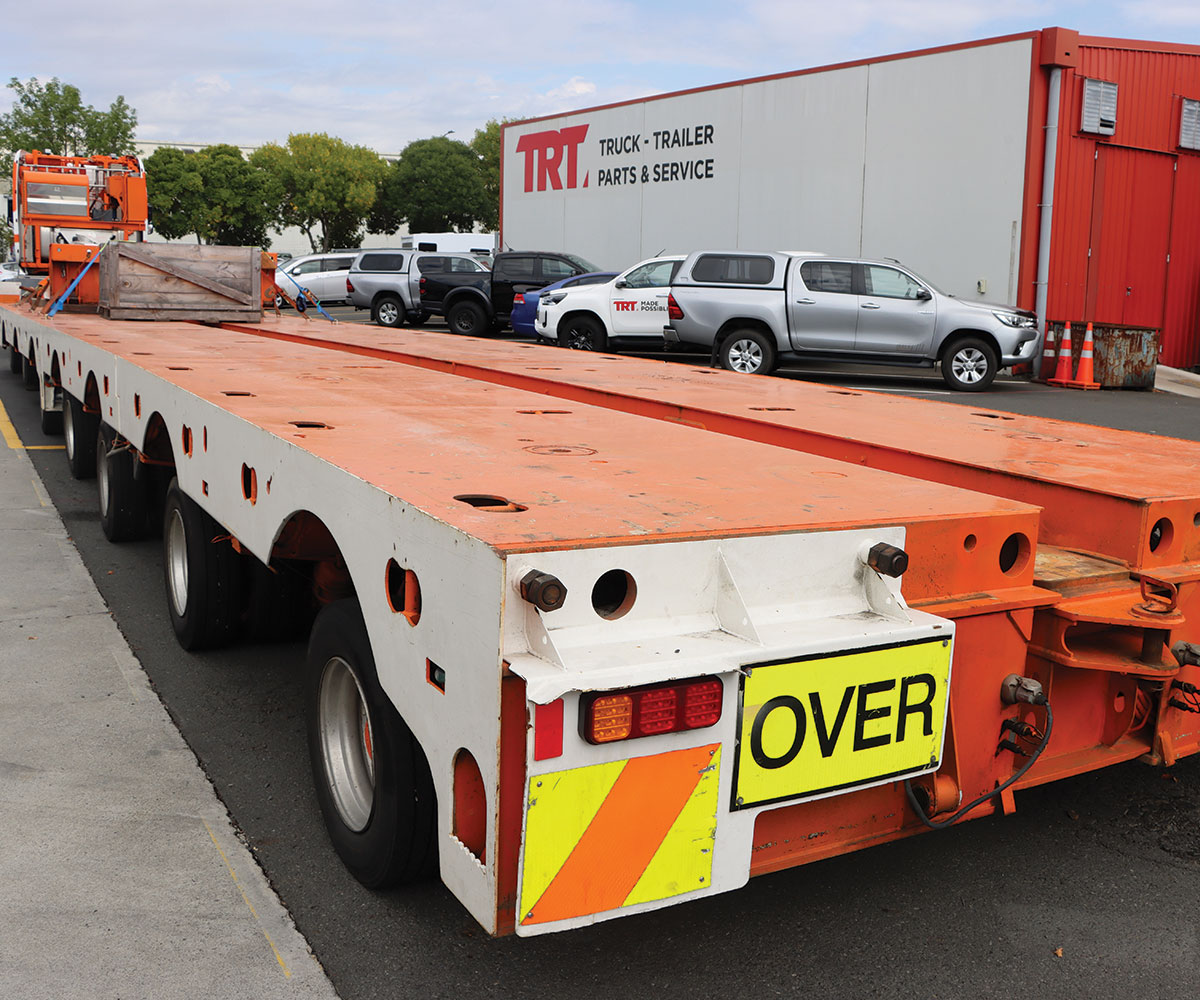

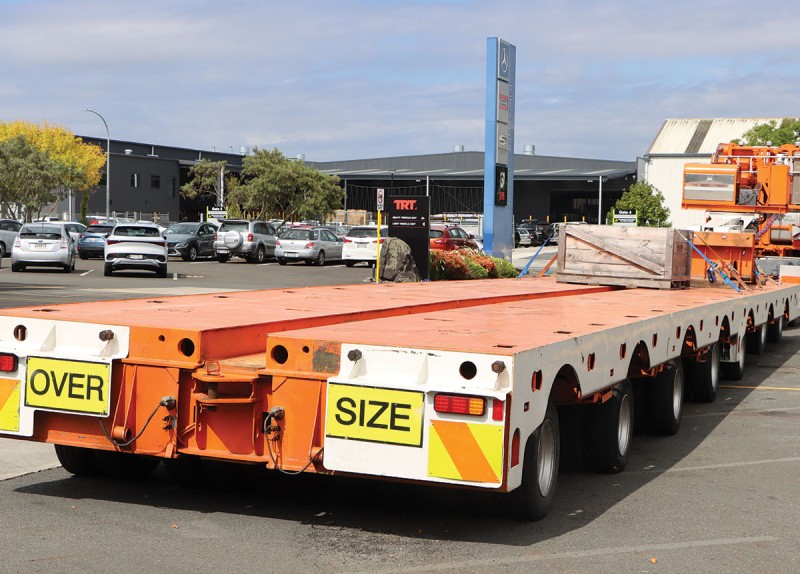

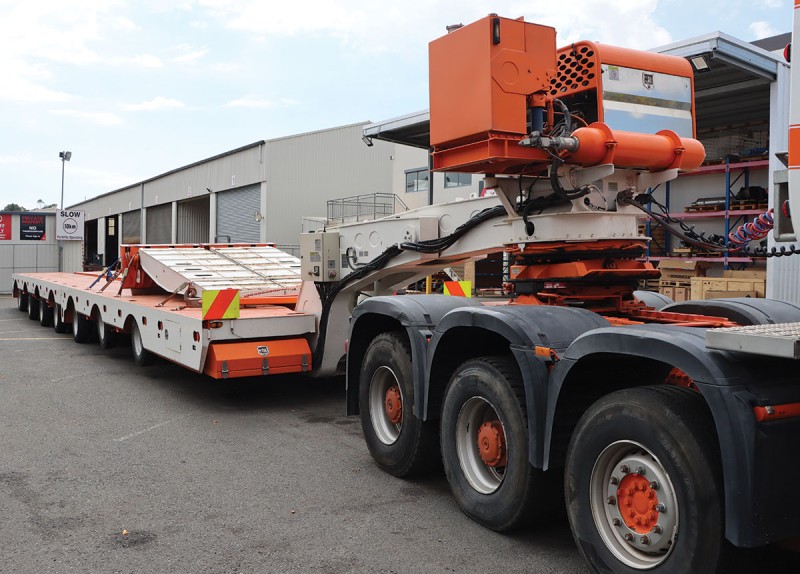

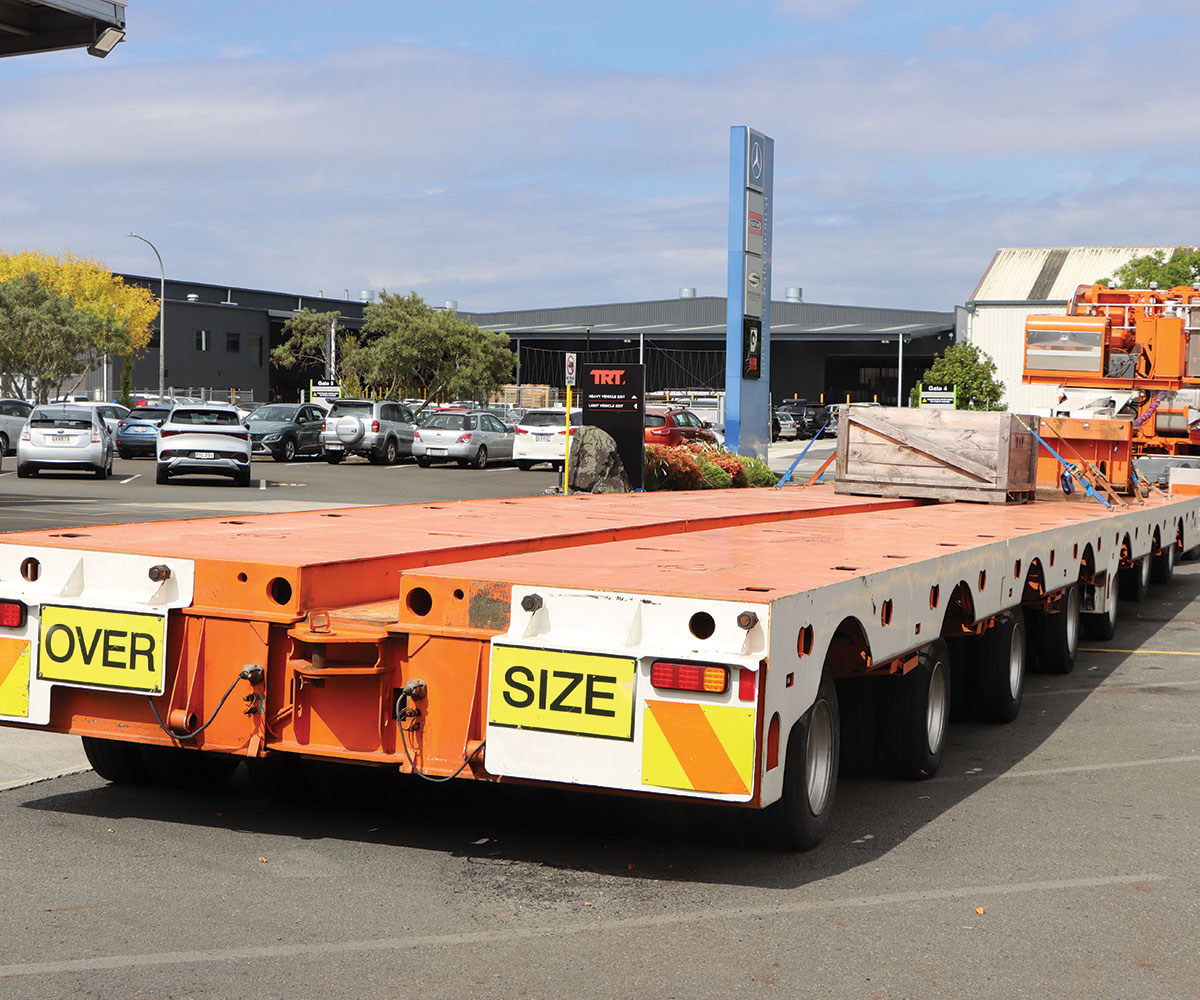

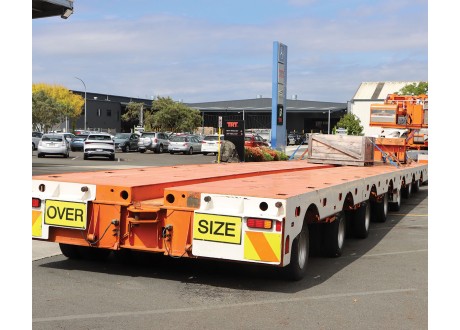

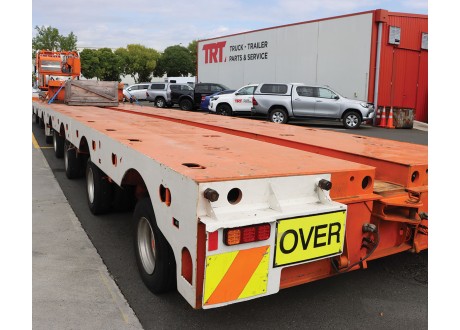

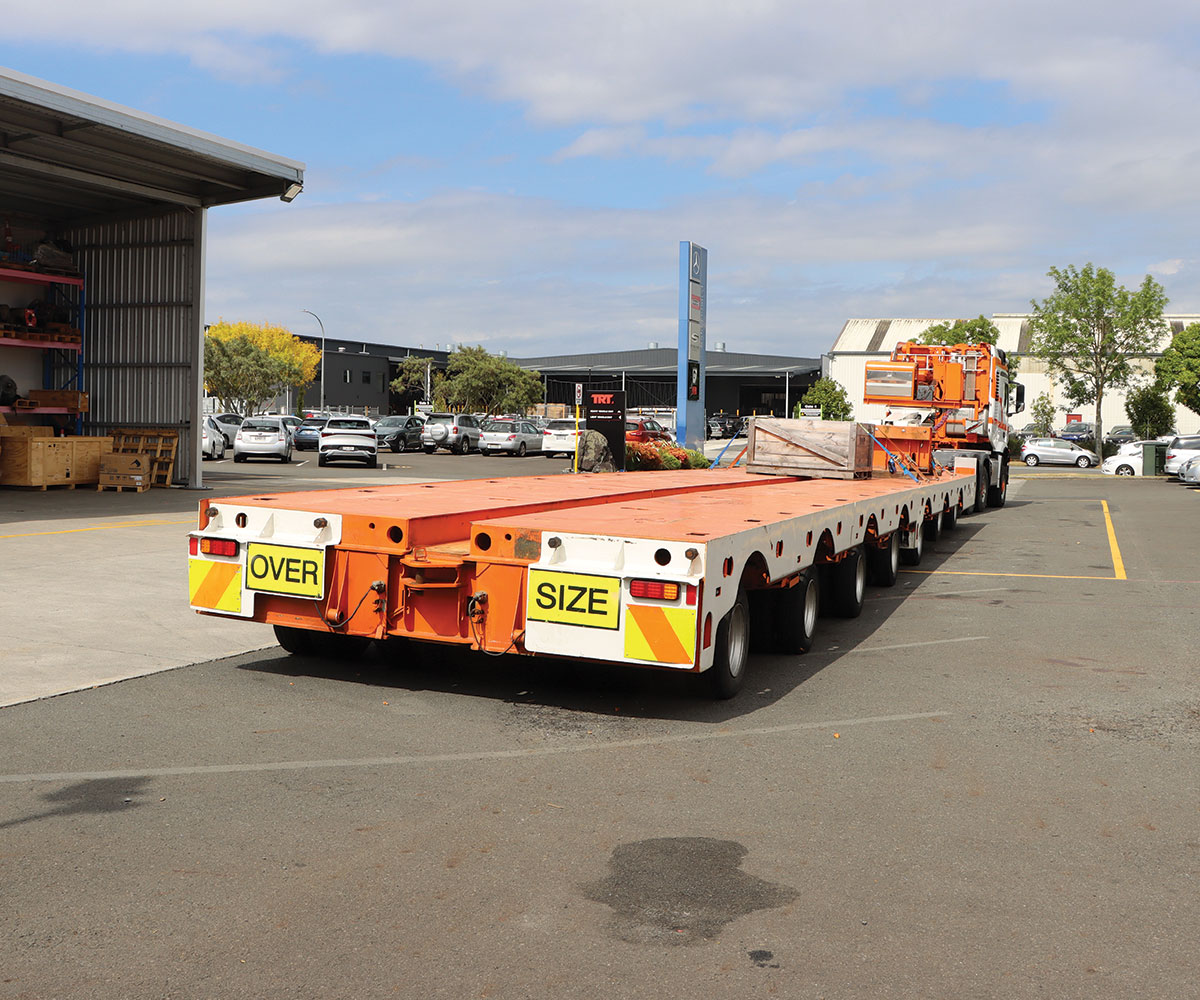

2017 TRT 7 Line ESS Modular Platform Trailer

This ESS Modular platform trailer is able to be set up as a 3 axle, 5 axle, 7 axle trailers to suit your required needs at the time.

A special mounting system allows ramps and modules to be connected simply and configured through an in-cab computer.

The trailer can be widened to various widths to suit, has all axles capable of steering to 45 degrees, either following the truck guide or by remote control. Suspension travel of 650mm on TRT’s double acting hydraulic suspension provides increased stability.

Trailer consists of

• 3 axle Lead trailer c/w Gooseneck and ramp connection = 3 axle Widening trailer with/without ramps
• 2 axle Module #1= 5 axle Widening trailer with/without ramps
• 2 axle Module #2 = 7 axle Widening trailer with/without ramps

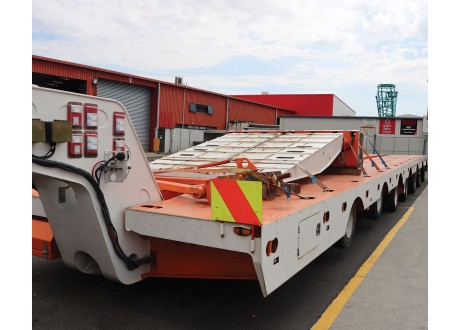

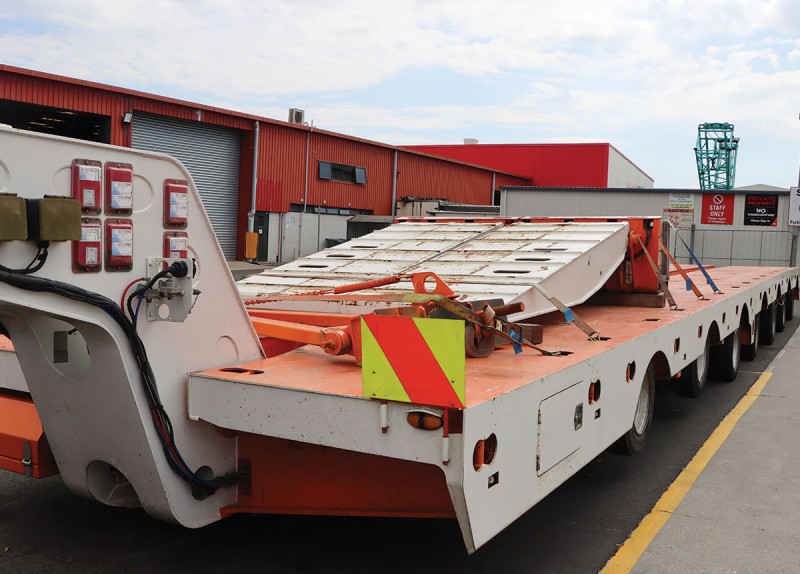

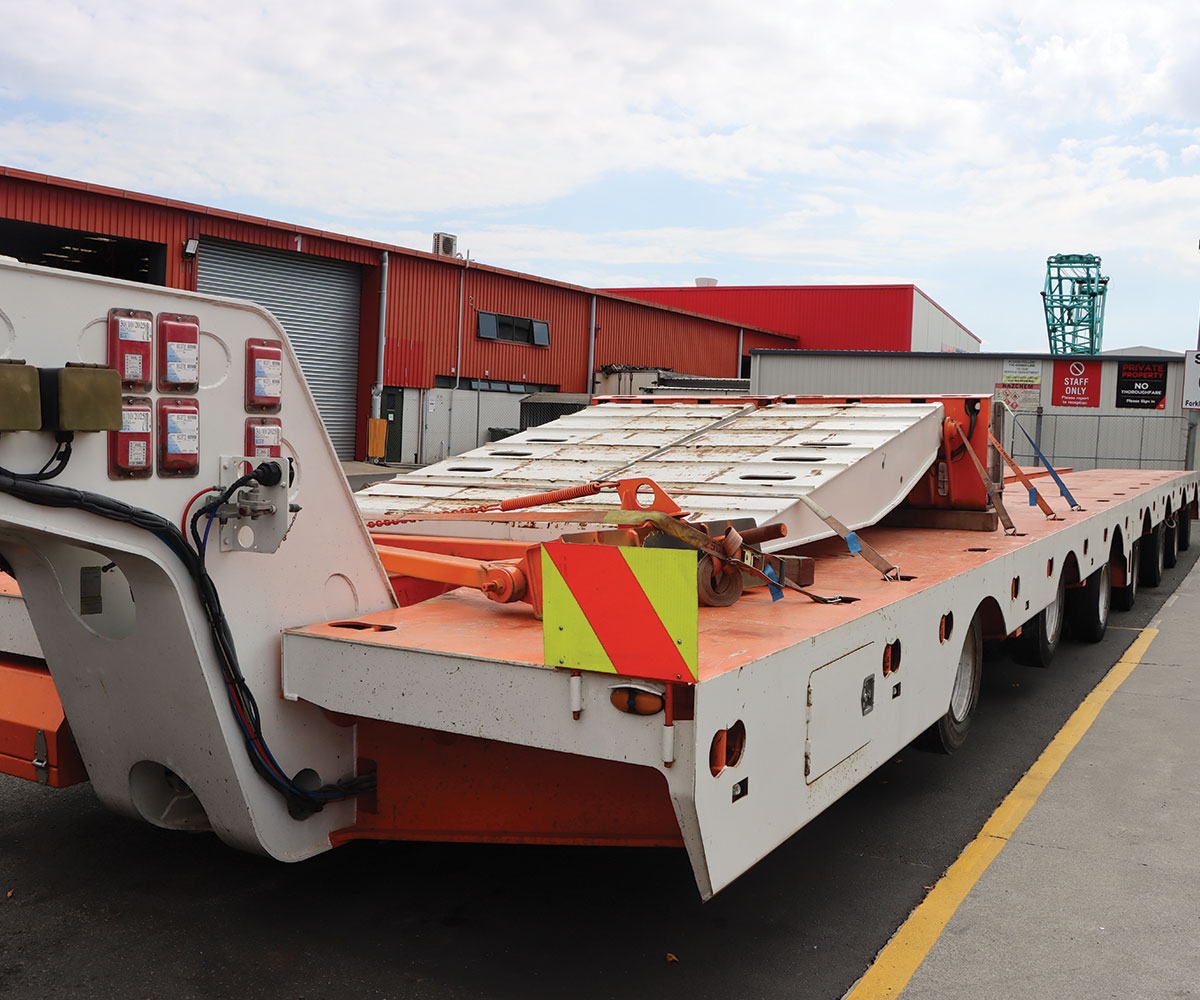

• Ramp module

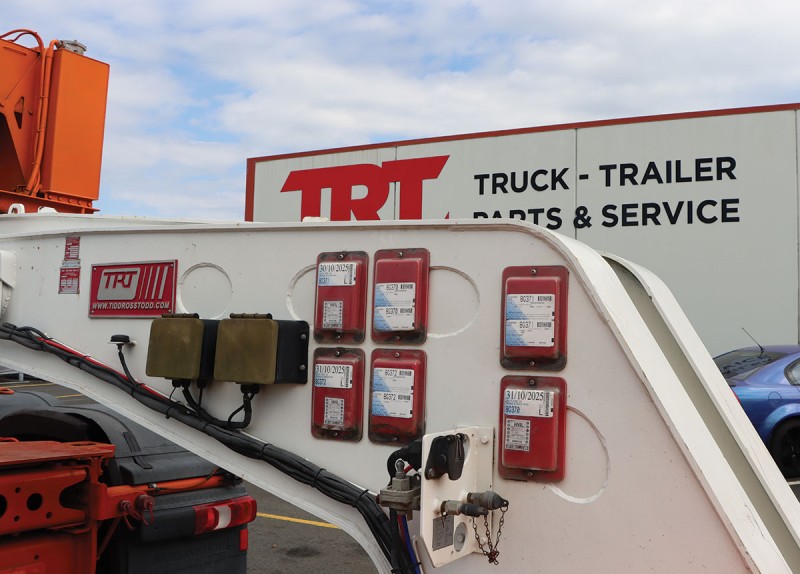

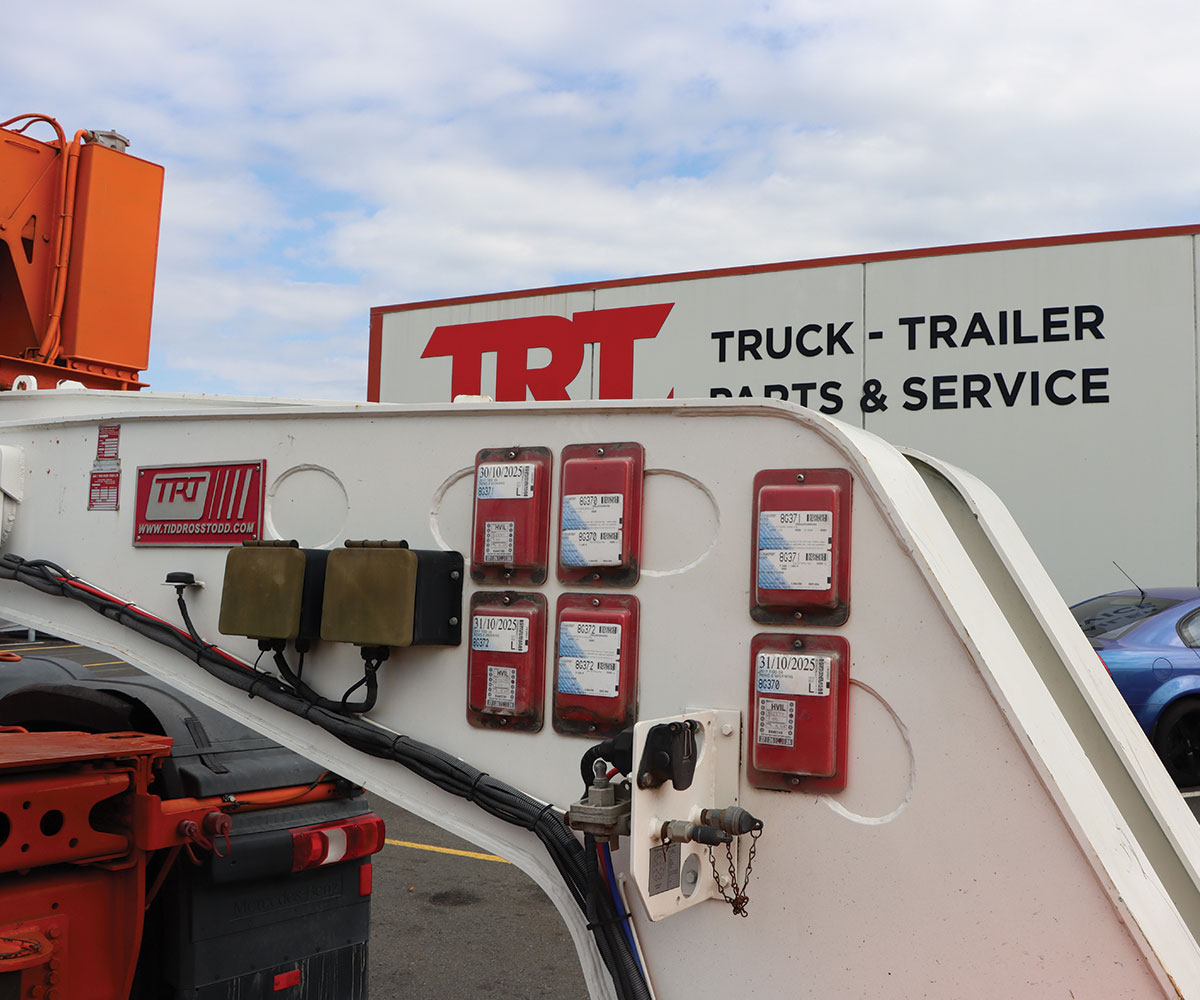

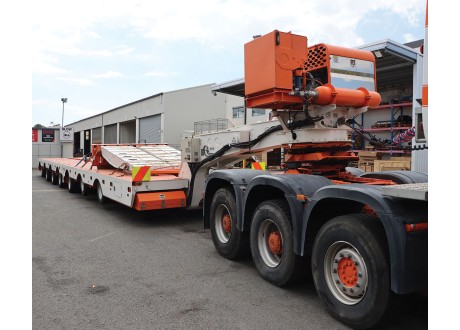

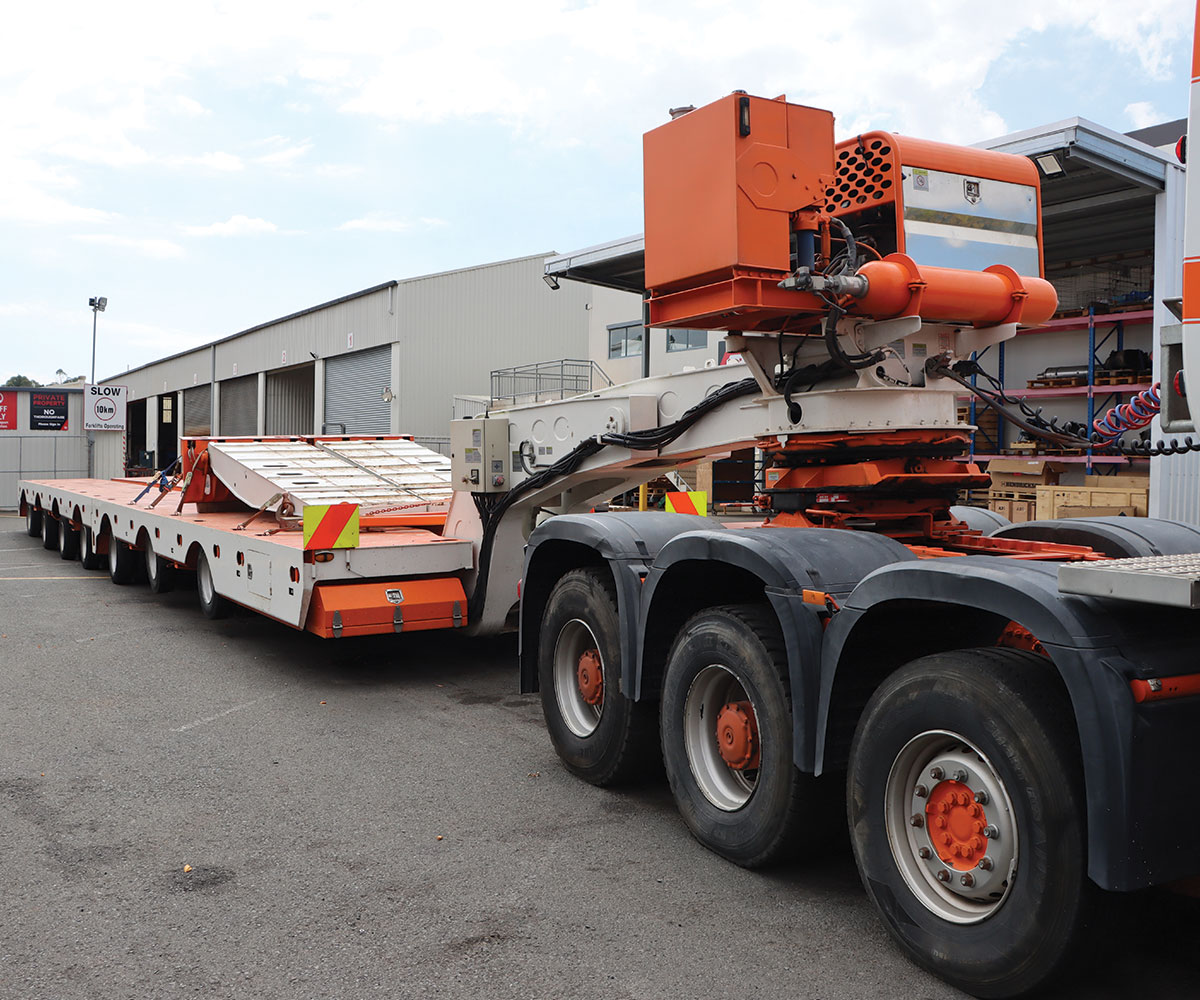

• Compensating gooseneck

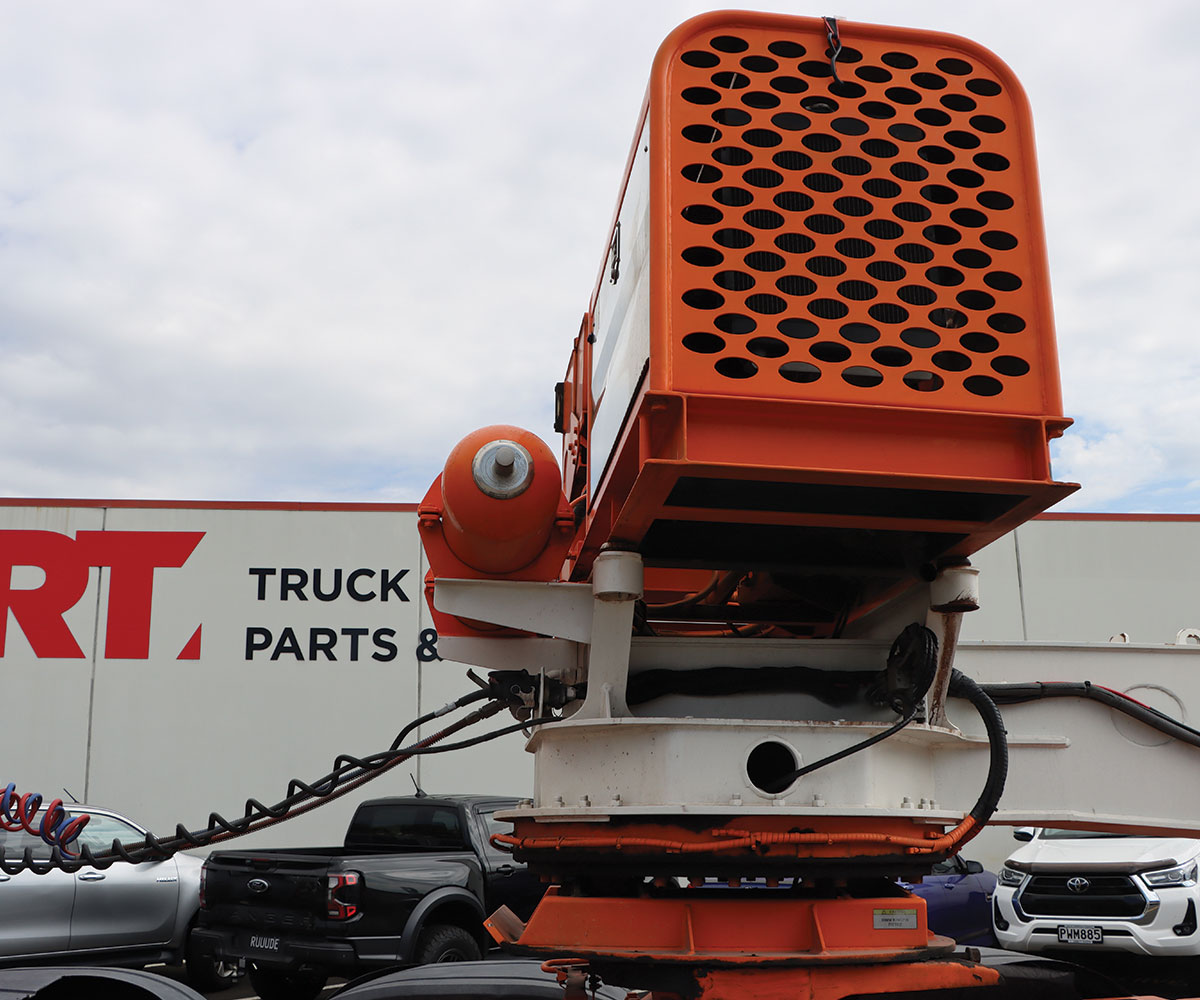

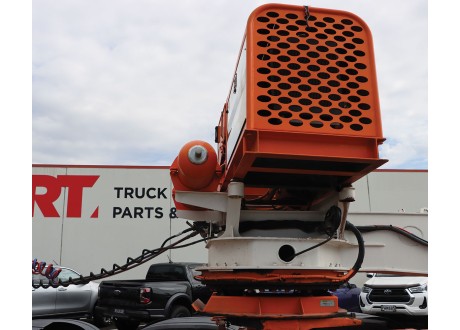

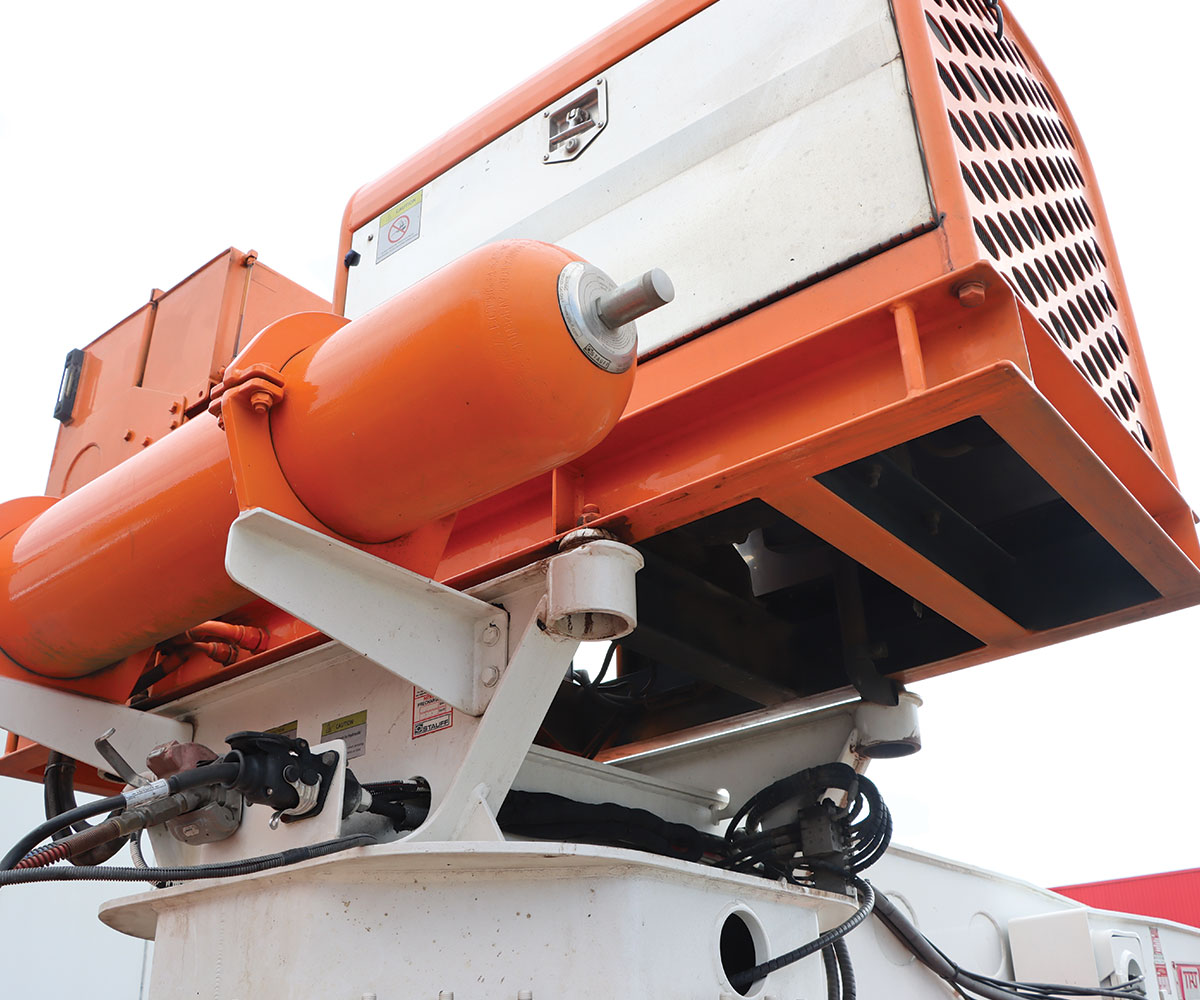

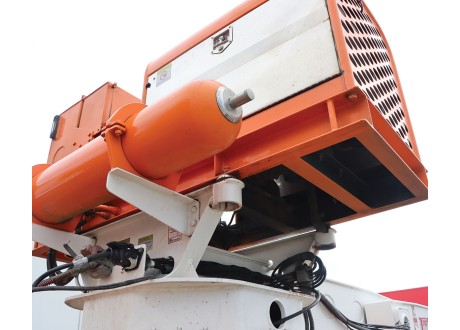

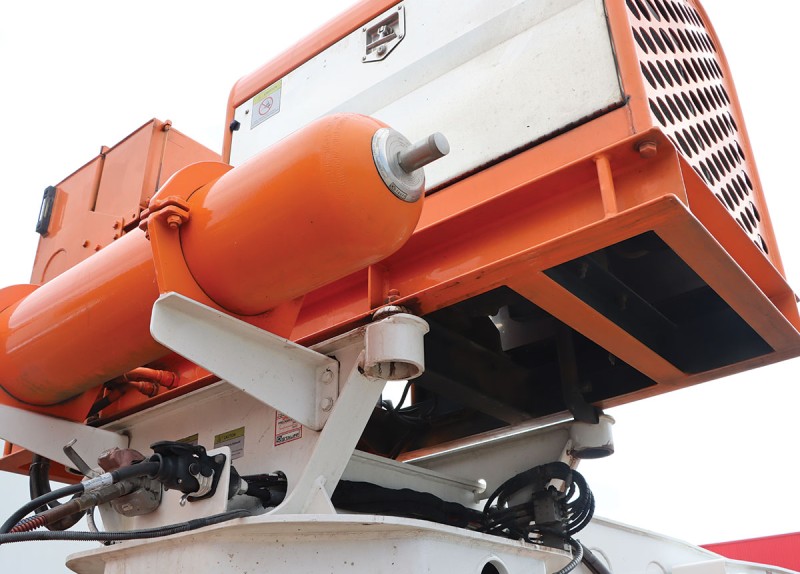

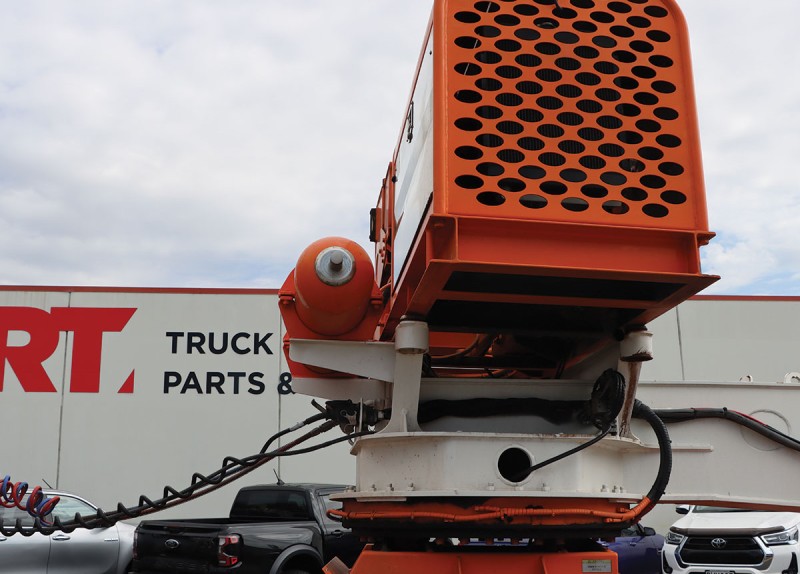

• 27hp Kohler water cooled Diesel Power pack
• All axles steer to 45 degrees
• double acting hydraulic suspension
• BPW 17.5 drum braked swivel ROWS of 8 axles
• Steel rims
• 2 spare wheels/tyres
• Fully proportional remote control for steering, lift/lower, suspension up/down & widening
• Auto greasing
• Special mounting system to add ramps and modules to make up various combinations.

Dimensions

• 3350mm closed
• 4880mm fully open
• Intermediate widths of 3.7m, 4m, 4,27m, 4.57m
• Deck length:
  • 8.4m as 3x
  • 13.2m as 5x8
  • 18.1m as 7x8

•  GVM = 140t
• Deck lower to 865mm
• Suspension stroke 650mm
